Fire Alarm System

The addressable Mega-Guard Fire Alarm System (FAS) monitors up to 4 or 8 different fire loops on the vessel

Download brochure Contact sales & service

Addressable Fire Alarm System
Features
System lay-out and operation
Fire Alarm procedure
Fault procedure
Mounting & dimensions
Conventional Fire Alarm System
Features
System lay-out and operation
Fire Alarm procedure
Fault procedure
Mounting & dimensions

Addressable Fire Alarm System

Features

The Mega-Guard Fire Alarm System (FAS) is available in two different versions: an addressable and a conventional marine fire alarm system. This section describes the addressable Fire Alarm System. The addressable FAS monitors up to 8 different loops on the ship in compliance with EN54-2 and type approved by classification societies.
A single loop supports up to 120 addressable fire detectors divided in up to 16 zones. The Mega-Guard addressable FAS supports a maximum of 480 fire detectors. Each detector is individually monitored and configured by the addressable Fire Alarm System. A total of 16 different fire detectors are available in order to suit all marine
applications. The Mega-Guard addressable FAS is powered by two 19~32VDC power supplies: one main supply and one back-up supply.

System lay-out and operation

The Mega-Guard addressable FAS consists of the following items:

FAS Operator Panel for flush panel mounting in bridge console
Addressable FAS Controller for din-rail mounting inside bridge console
Addressable Detectors connected to the FAS Controller
I/O Cable connecting the FAS Operator Panel with FAS Controller

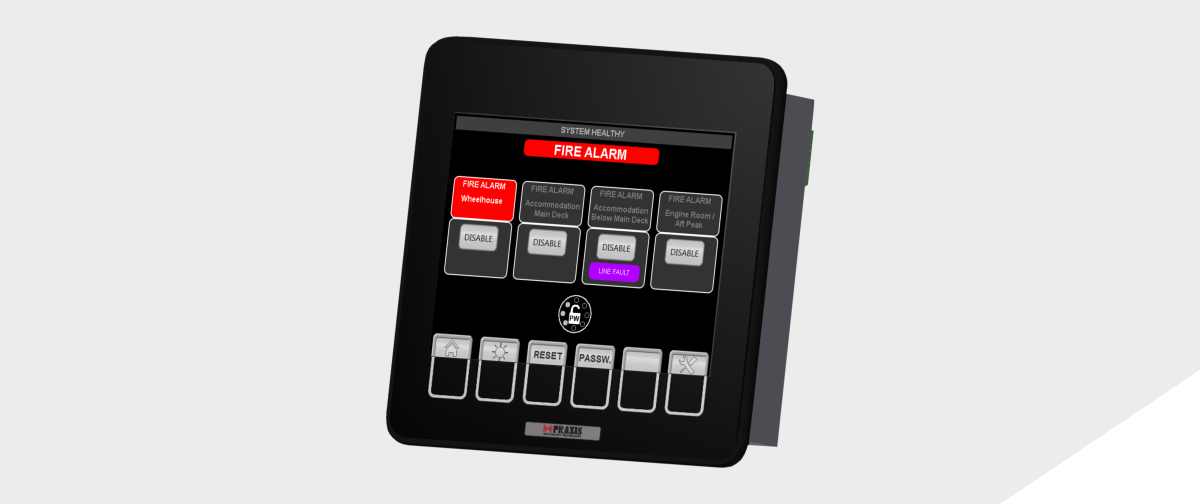

The FAS Operator Panel is operated through a user friendly 5,7" touchscreen for intuitive operation and monitoring. This Operator Panel is available in two different versions, a panel with a metal front for commercial and navy ships and a panel with glass front for mega yachts. The FAS Operator Panel has two operating levels; one accessible for all crew members and a second level which is only accessible for authorized crew members via entering a password. The Addressable FAS Controller is DIN rail mounted inside bridge console and the detectors are wired in a loop and connected to this Controller. Addressable Detectors have their own address so that the Mega-Guard
addressable FAS is able to distinguish each individual detector. The I/O Cable with length of 3 or 5 meter, inter-connects the FAS Operator Panel with the FAS Controller.

Fire Alarm procedure

A Fire Alarm is generated when one or more of the FAS detectors comes into alarm condition. The Fire Alarm System is able to distinguish all individual detector alarms.
The Fire Alarm procedure is as follows:

Activation of: Fire Alarm lamp, internal buzzer (2Hz), external Siren (continuous) and identification of detector in alarm on the FAS Operator Panel.
When Stop Horn is pressed in Level 2 the internal buzzer and external siren are silenced. This function is also available in Level 1 when selected during installation.
When Reset pressed in Level 2 the system is reset. Fire Alarm lamp will extinguish and detector alarm on touchscreen will be cleared when fire alarm condition has disappeared.

Fault alarm procedure

A Fault Alarm is generated when one of following conditions:

Loop fault
Siren fault
Earth failure
Main or back-up supply failure

The Fault Alarm procedure is as follows:

Activation of: Fault Alarm lamp, internal buzzer, external Siren (when selected during installation) and identification of fault on the FAS Operator Panel.
When Stop Horn is pressed in Level 2 the internal buzzer and external siren are silenced. This function is also available in Level 1 when selected during installation.
When automatic Reset selected during installation, the FAS returns to normal condition in case fault disappears
When manual Reset is selected during installation, the FAS will return to normal condition after pressing Reset when fault disappears.

Mounting & dimensions

Conventional Fire Alarm System

Features

The Mega-Guard Fire Alarm System (FAS) is available in two different versions: an addressable and a conventional marine fire alarm system. This section describes the conventional Fire Alarm System. The conventional FAS monitors up to 4 different zones on the ship in compliance with EN54-2 and type approved by classification societies.
A single zone supports up to 32 conventional fire detectors. The Mega-Guard conventional FAS supports a maximum of 128 fire detectors. Each zone is individually monitored and a distinction can be made in between Heat/Smoke Detectors and Manual Call Points. A total of 16 different fire detectors are available in order to suit all marine
applications. The Mega-Guard conventional FAS is powered by two 19~32VDC power supplies: one main supply and one back-up supply.

System lay-out and operation

The Mega-Guard addressable FAS consists of the following items:

FAS Operator Panel for flush panel mounting in bridge console
Conventional FAS Controller for din-rail mounting inside bridge console
Conventional Detectors connected to the FAS Controller
I/O Cable connecting the FAS Operator Panel with FAS Controller

The FAS Operator Panel is operated through a user friendly 5,7" touchscreen for intuitive operation and monitoring. This Operator Panel is available in two different versions, a panel with a metal front for commercial and navy ships and a panel with glass front for mega yachts. The FAS Operator Panel has two operating levels; one accessible for all crew members and a second level which is only accessible for authorized crew members via entering a password. The Conventional FAS Controller is DIN rail mounted inside bridge console and the detectors are wired in parallel and connected to this Controller. Conventional Detectors in a single zone cannot be extinguished from each
other; except for Manual Call Points. The I/O Cable with length of 3 or 5 meter, inter-connects the FAS Operator Panel with the FAS Controller.

Fire Alarm procedure

A Fire Alarm is generated when one or more of the FAS detectors (heat/smoke/flame/mnual call point) comes into alarm condition. The Fire Alarm System is able to distinguish all individual zone alarms.
The Fire Alarm procedure is as follows:

Activation of: Fire Alarm lamp, internal buzzer (2Hz), external Siren (continuous) and identification of zone in alarm on the FAS Operator Panel.
When Stop Horn is pressed in Level 2 the internal buzzer and external siren are silenced. This function is also available in Level 1 when selected during installation.
When Reset pressed in Level 2 the system is reset. Fire Alarm lamp will extinguish and detector alarm on touchscreen will be cleared when fire alarm condition has disappeared.

The internal buzzer and external siren can be activated again in Level 2 by pressing Stop Horn for more than 2 seconds.

Fault alarm procedure

A Fault Alarm is generated when one of the following conditions occurs:

Loop fault
Siren fault
Earth failure
Main or back-up supply failure

The Fault Alarm procedure is as follows:

Activation of: Fault Alarm lamp, internal buzzer, external Siren (when selected during installation) and identification of fault on the FAS Operator Panel.
When Stop Horn is pressed in Level 2 the internal buzzer and external siren are silenced. This function is also available in Level 1 when selected during installation.
When automatic Reset selected during installation, the FAS returns to normal condition in case fault disappears
When manual Reset is selected during installation, the FAS will return to normal condition after pressing Reset when fault disappears.
